Material: QT 450
Size: 120*120MM
Weight:1100G
Surface: Black or Electric-Galvanized

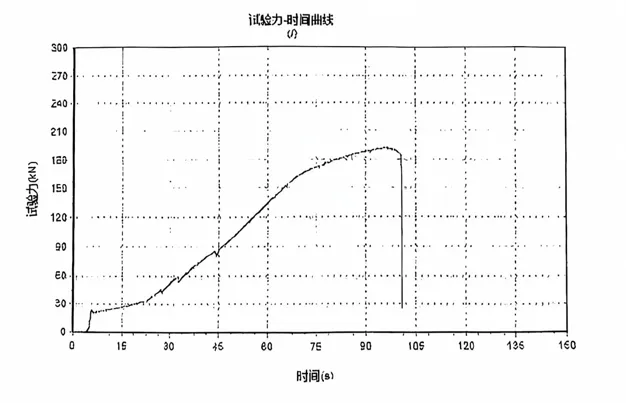

Breaking Load: Around 180KN
Product Description

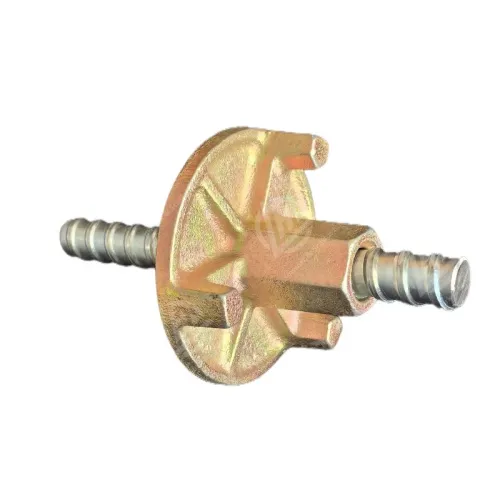

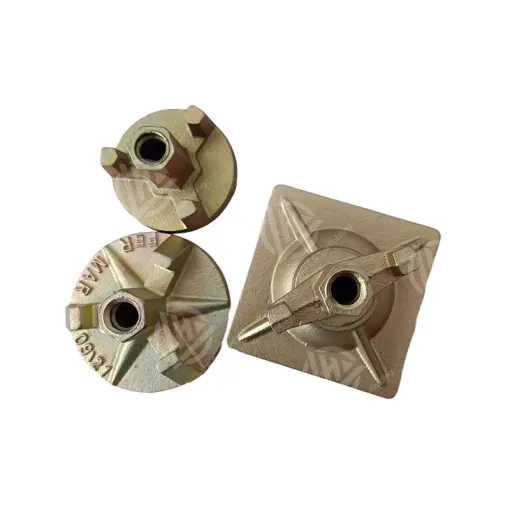

Cast wing nut is a key accessory in aluminum formwork systems, used in conjunction with tie rods to securely fasten panels during concrete casting. Made of high-strength ductile cast iron, it offers excellent durability and reusability in construction environments. The formwork super plate casting nut is used together with formwork tie rod size including 15/17mm to fasten the formwork. It is made of casting iron, its break load can reach 180-190KN. The surface can be black or galvanized, it depends on customers’ requirement. Meantime we can make new mould based on customers’ drawing.
|
Material Testing Report |
||||||||||
|
Material |
Chemical Component% |
Machanical Property |
||||||||
|
C |
Si |
Mn |
P |
S |
Cr |
Бb( MPA) |
∑s (MPA) |
A(%) |
(HB) |
|
|
QT450 |
3.75 |
2.91 |
0.25 |
0.046 |
0.026 |
|
469 |
260 |
14 |
192 |
| Product Name | Cast Wing Nut |
| Material | Ductile Cast Iron |
| Surface Treatment | Plain / Galvanized / Painted |
| Weight | Approx. [insert weight] kg |

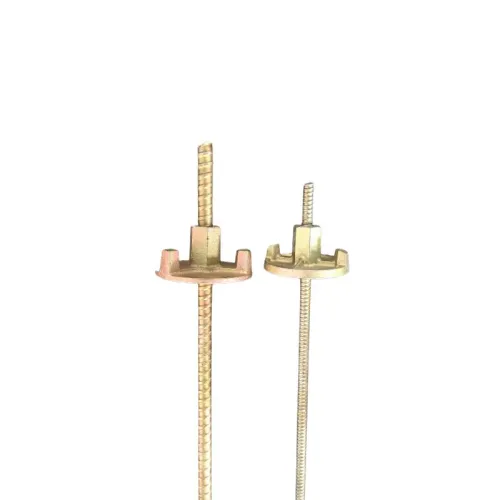

| Compatible Tie Rods | D15 / D17 / D20 |
| Tensile Strength | [insert data if available] |
| Finish Options | Electro-galvanized, Hot-dip galvanized |
The cast wing nut is suitable for use in aluminum formwork systems for walls, columns, beams, and slabs. It works with formwork tie rods and other accessories to ensure firm and reusable connections during concrete pouring. This accessory is widely used in residential, commercial, and infrastructure projects.

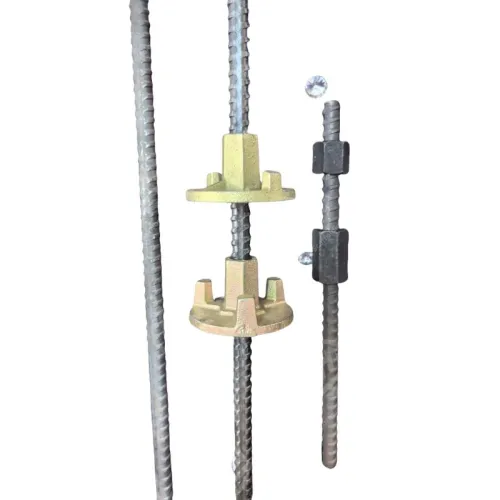

| Tie Rods | Used to hold the formwork panels in place. |
| Waler Plates | Reinforces the structure and distributes load. |
| Formwork Clamps | Used to clamp and secure formwork elements. |
| Steel Prop Nuts | Supports vertical formwork elements during pouring. |
| Anchor Nuts | Provides secure fixing of tie rods in formwork systems. |
