Diameter: 15/17mm
Weight: 1.5kgs/m
Standard: AiSi, ASTM, bS, DIN, GB, JIS
Surface: Black
Product Description
Our formwork tie rods are essential components for securing formwork systems, providing high tensile strength and reliable load-bearing capacity for concrete structures. Manufactured from premium-grade steel, they ensure excellent durability and reusability, making them ideal for heavy-duty construction projects.
✔ High Load-Bearing Capacity – Engineered for strength and stability in concrete formwork applications.
✔ Corrosion & Rust Resistance – Available with galvanized or anti-rust coating for extended lifespan.
✔ Standard & Custom Sizes – Offered in various diameters and lengths to meet project requirements.
✔ Easy Installation & Removal – Designed for quick assembly, reducing labor time and costs.
✔ Compatible with Accessories – Works seamlessly with wing nuts, water stoppers, anchor plates, and other formwork components.
✔ Building Construction – Walls, columns, beams, and slabs.
✔ Infrastructure Projects – Bridges, tunnels, highways, and railways.
✔ Industrial & Commercial Construction – Power plants, factories, and high-rise buildings.
✔ Material: Carbon steel / Alloy steel
✔ Thread Type: Cold-rolled or hot-rolled thread
✔ Surface Treatment: Galvanized, electroplated, or painted
✔ Diameter: Available in 12mm, 15mm, 17mm, 20mm, and custom sizes
✔ Breaking Load Capacity: Up to 250kN (custom specifications available)
✔ Accessories: Compatible with wing nuts, water stoppers, anchor plates, tie washers, etc.
✔ High-Quality Steel – Ensures long-term durability and high tensile strength.
✔ Cost-Effective – Reusable design reduces material waste and long-term costs.
✔ Custom Manufacturing – Available in different sizes, coatings, and load capacities to suit specific projects.
✔ Large Stock & Fast Delivery – Reliable supply chain for bulk orders and timely shipments.
We provide OEM & ODM services, allowing customization of tie rod length, diameter, and surface treatment to fit your construction needs. Contact us today for a quotation or further details on our formwork tie rods!

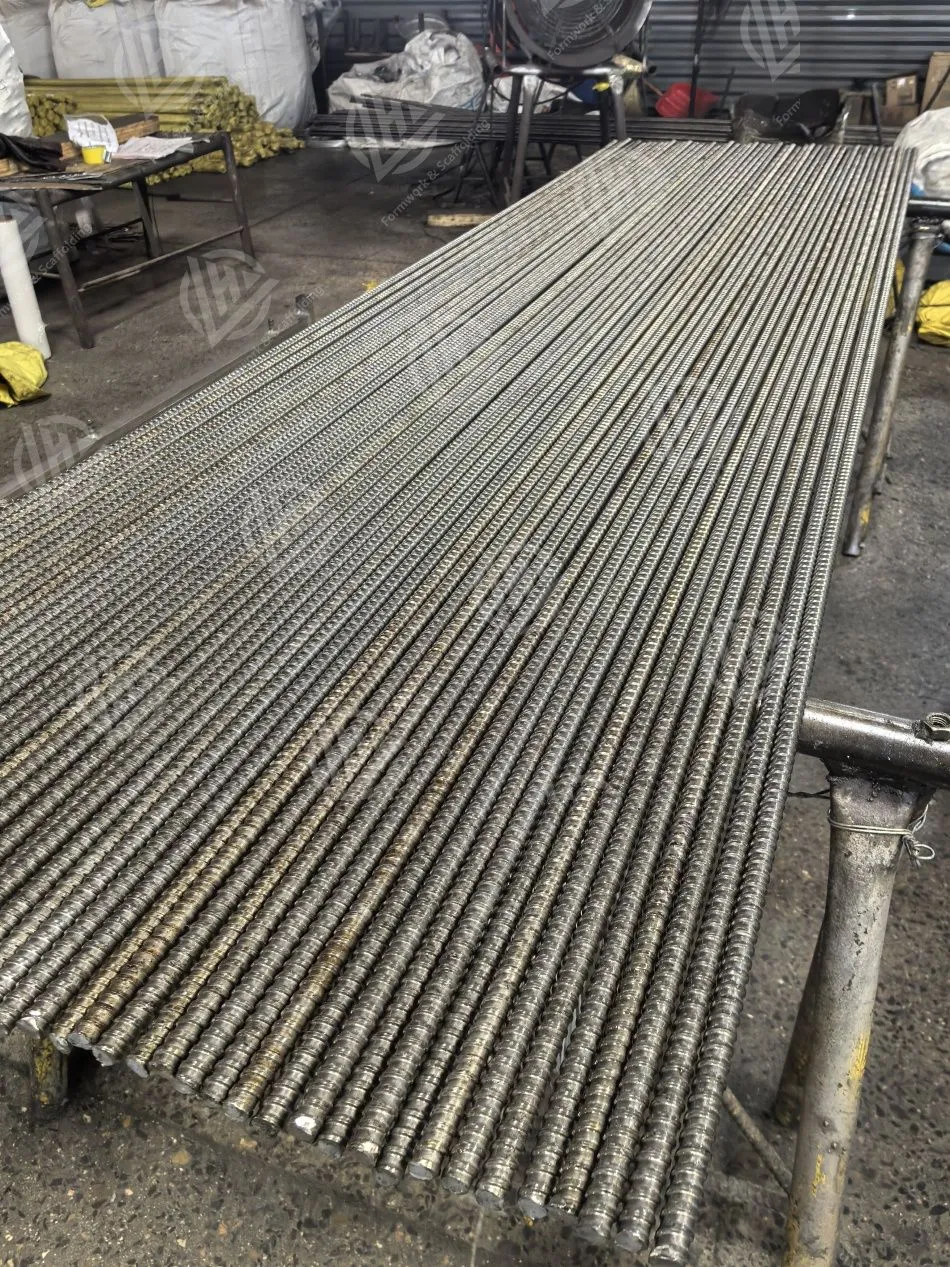

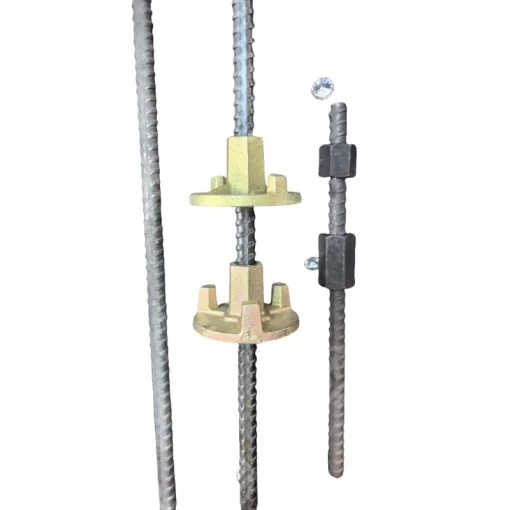

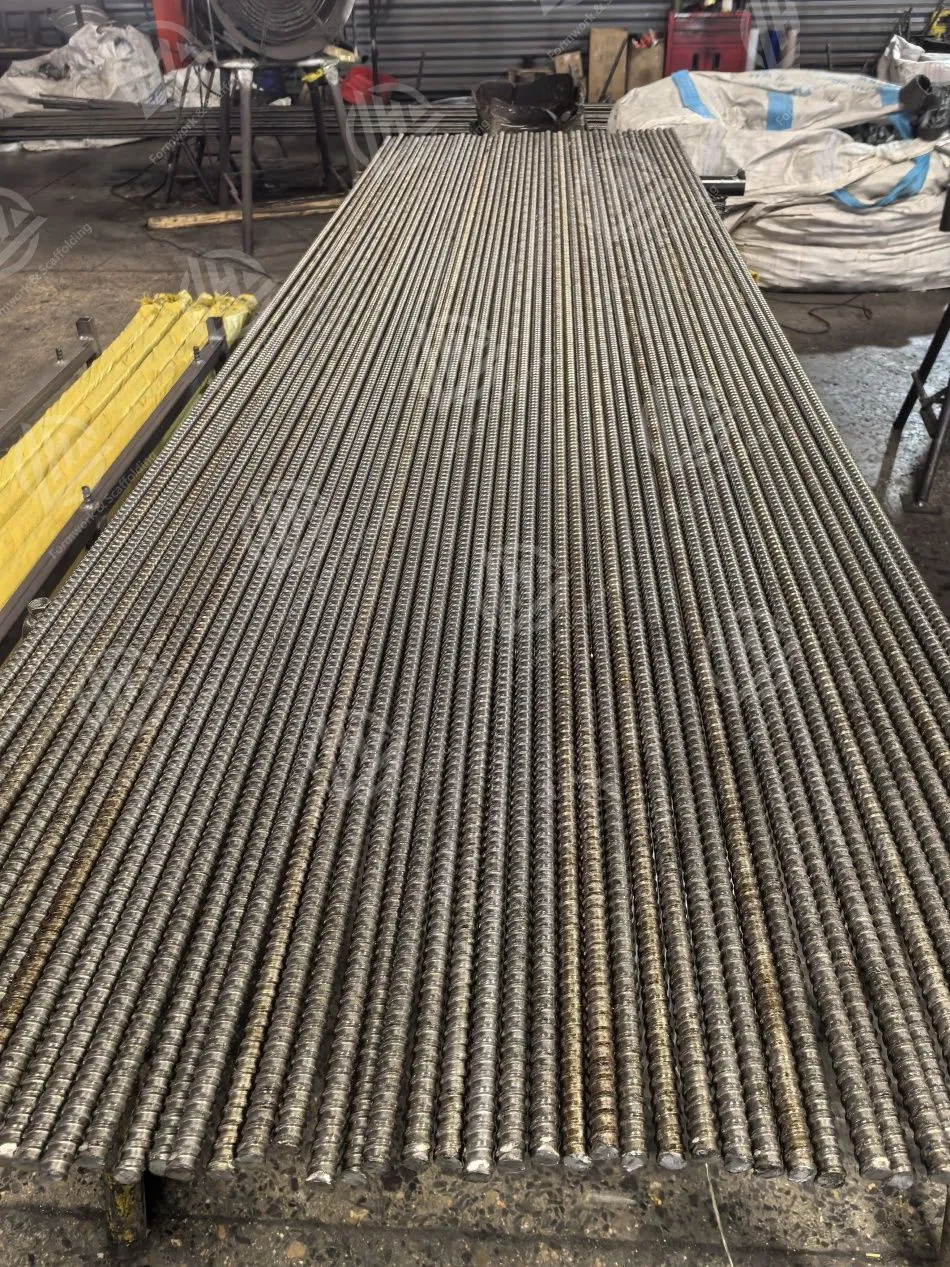

The formwork hot rolled tie rod is used in concrete building. It is used together with tie nut to fasten the wall formwork. Its producing process is hot rolled, surface usually is black. Package is bundle. Normal size is D15, D20.
|
NAME |
PROCESS |
GRADE |
STANDARD |
DAAMETER(MM) |
SURFACE TREATMENT |
|
THREAD BAR |
HOT ROLLED |
PSB500.785.830.930.1080 |
AISi, ASTM, bS, DIN, GB, JIS |
D15.D18, D20, D25, D32，D36.D40.D50 |
BLACK GALVANZED |
Test item: Tensile Test
Test Method: GB' 228.1-2010 and client's information
|
Test item |
Sample diameter（mm） |
Tensile strength (Rm)(MPa) |
Yield strength (ReL)(MPa) |
Con. |
|
Req. |
≥1030 |
≥830 |
|
|
|
|
φ15 |
1117(197.7KN) |
963(170.4kN) |
|
