Cuplock system components including top cup, bottom cup and blade. The blade is 220g or 250g, surface is black color. It is strong enough, allow big bearing capatiry and strong stability. It is easy to install and disassemble.
Product Description

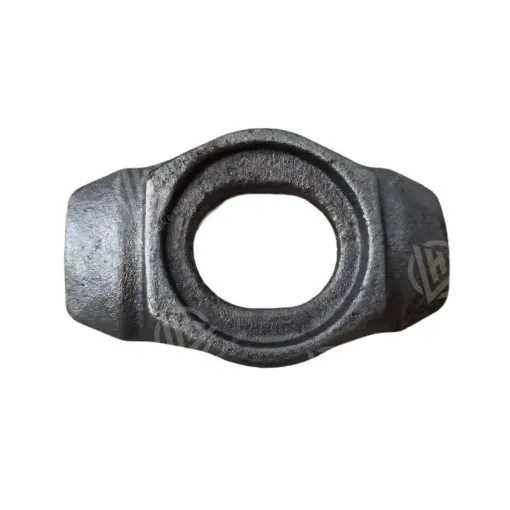

In the Cuplock scaffolding system, the "blade" is a component that, along with the "cup," facilitates the secure connection of vertical standards (or uprights) and horizontal ledgers. The blade is typically welded to the ends of the ledger and is inserted into the cup on the standard. By rotating the cup, the blade is locked in place, connecting the ledger to the standard without the need for nuts, bolts, or wedges.
Connection: The blade is the primary means of connecting the horizontal ledgers to the vertical standards.
Locking: The cup and blade system allows for a secure and rigid connection by rotating the cup.
Speed and Ease: The Cuplock system, with its blade and cup design, is known for its fast and easy assembly compared to traditional scaffolding methods
|
NAME |

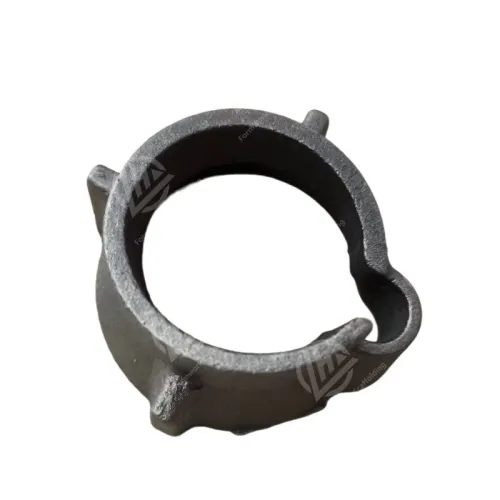

TOP CUP |
NAME |

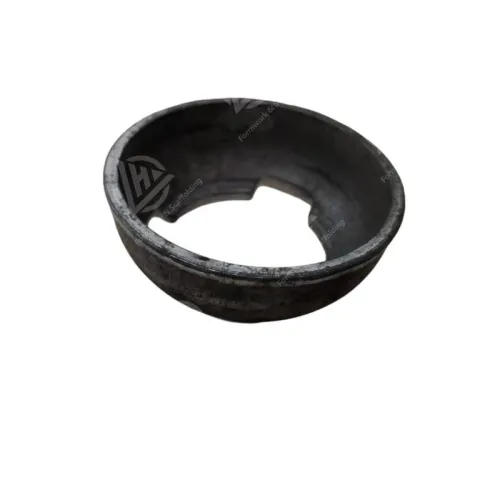

BOTTOM CUP |
NAME |
BLADE |
|
WEIGHT |
420-430G |
WEIGHT |
190-200G |
WEIGHT |
220/250G |
|
SURFACE |
BLACK |
SURFACE |
BLACK |
SURFACE |
BLACK |

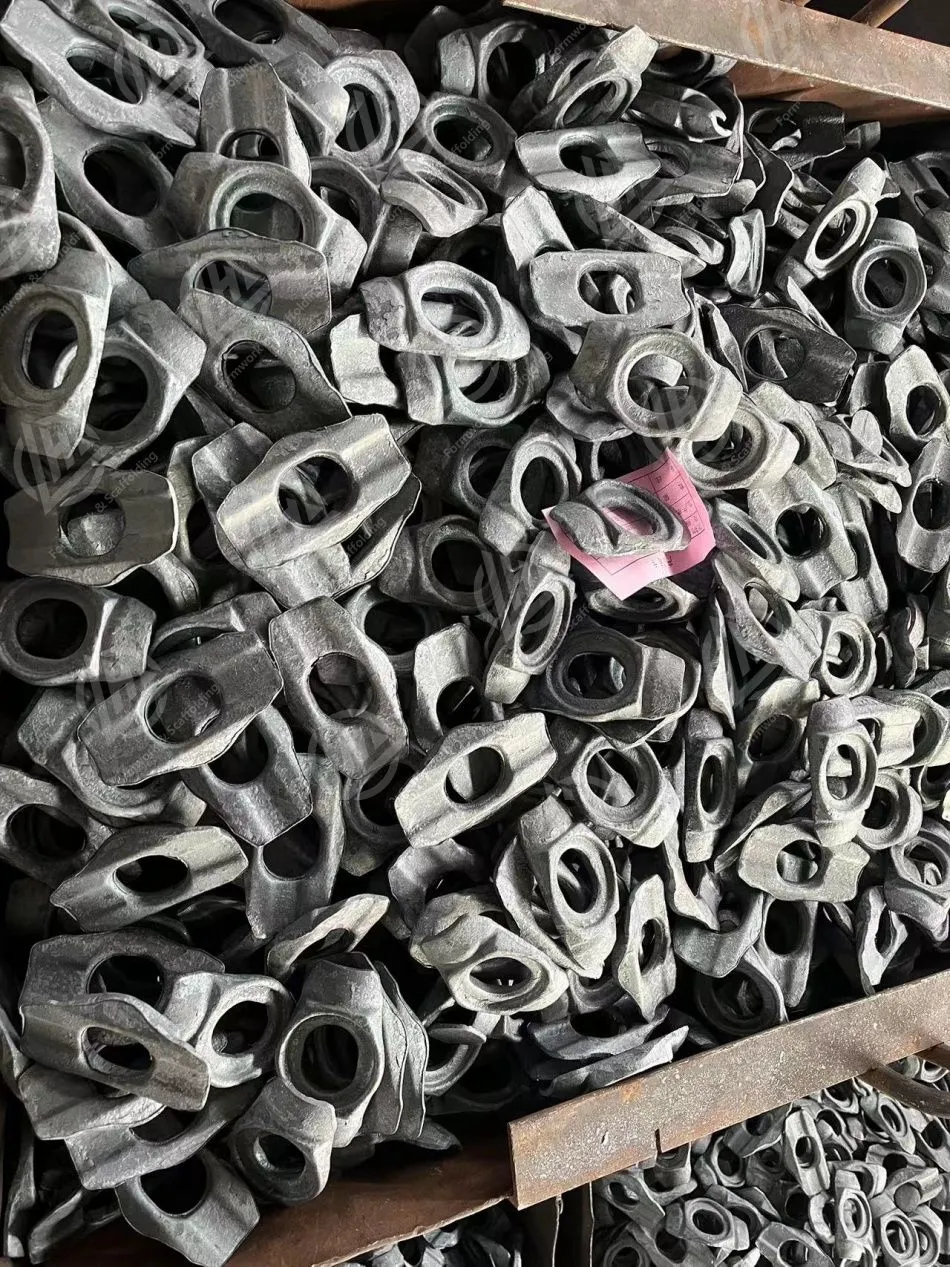

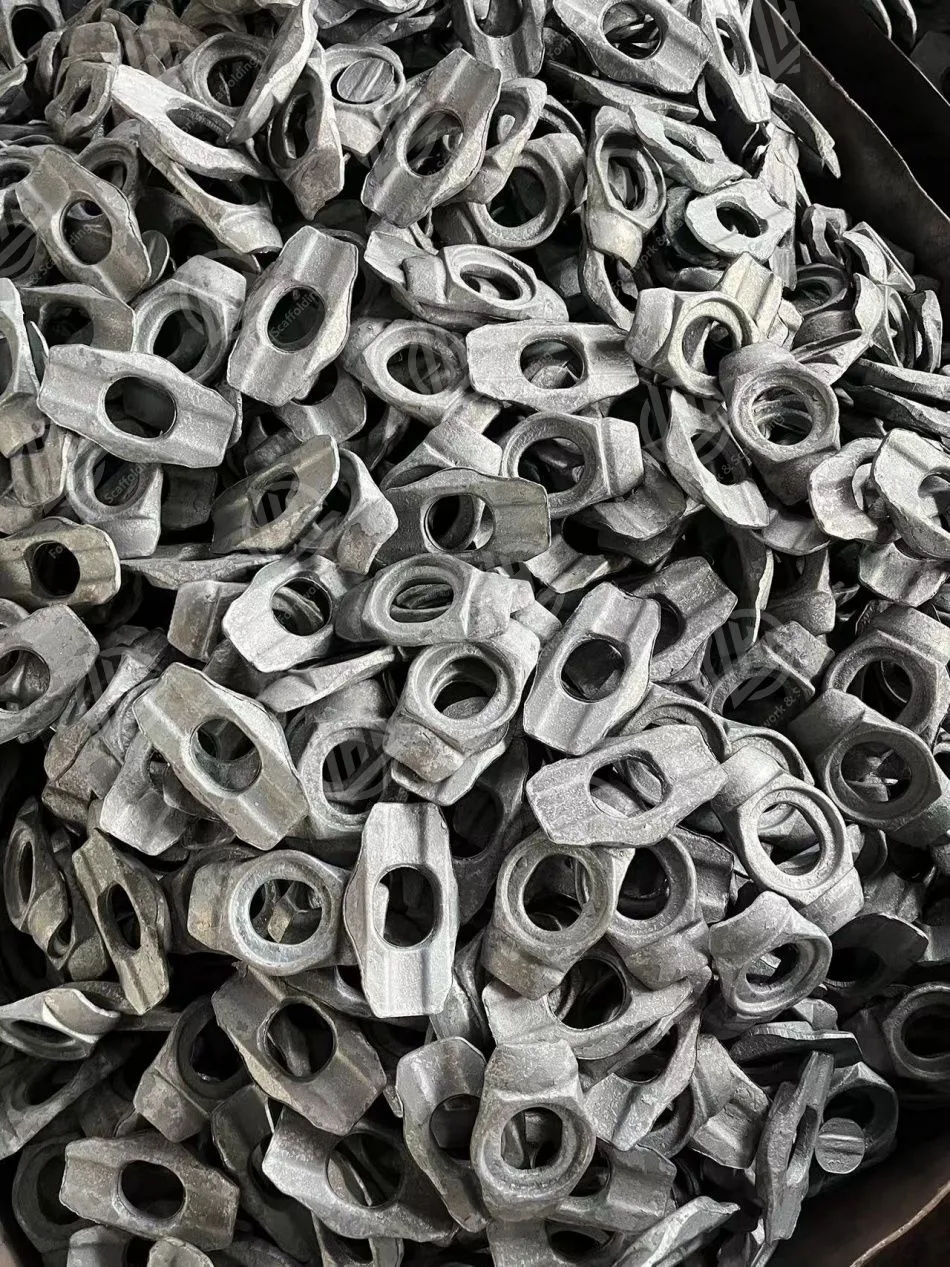

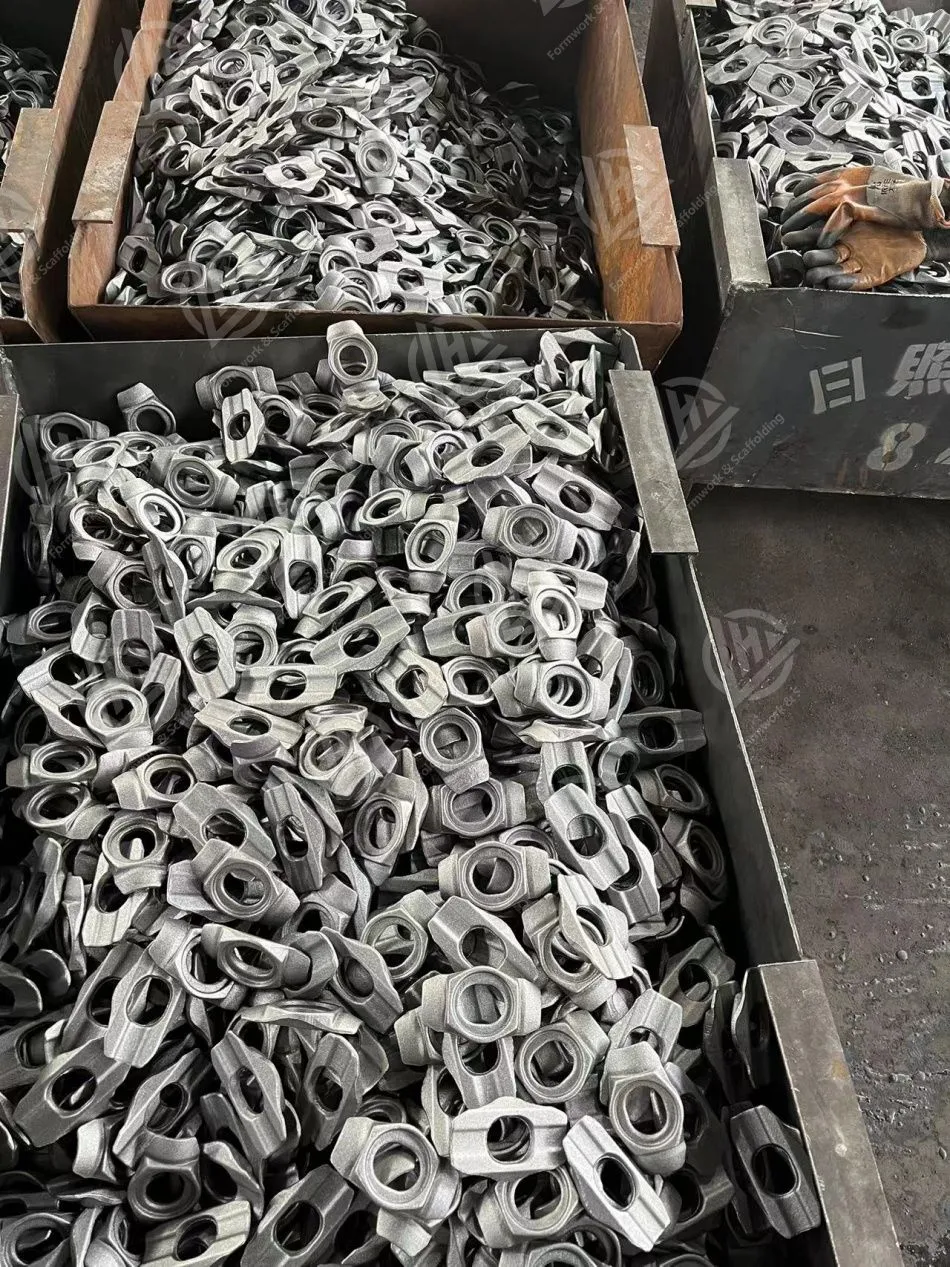

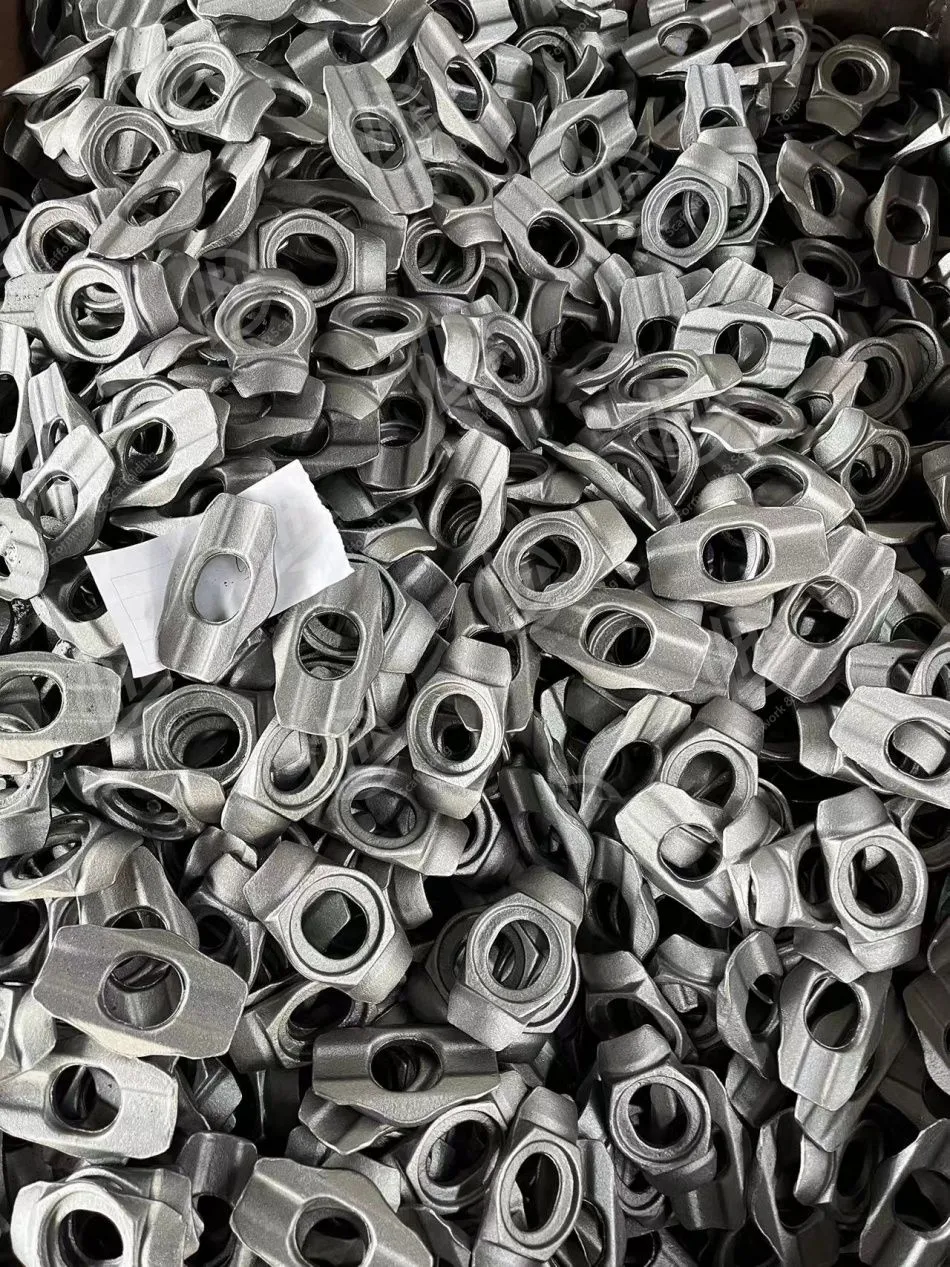

The Cuplock scaffolding system is renowned for its efficiency and safety in construction projects. A critical component of this system is the hot forged blade, which plays a vital role in connecting horizontal ledgers to vertical standards.
Crafted from high-strength forged steel, ensuring durability and reliability.
Available in 220g and 250g variants to suit different load requirements.
Black oxide coating for enhanced corrosion resistance and longevity.
Precisely engineered to fit seamlessly with Cuplock top and bottom cups, facilitating quick and secure connections.
The forged blade design provides a robust connection, reducing the risk of structural instability.
The Cuplock system's unique locking mechanism allows for rapid assembly and disassembly without the need for additional tools.
Suitable for various construction applications, including high-rise buildings, bridges, and industrial structures.
Diameter: 48.3mm (standard scaffolding tube size).
Material Grade: Q235 steel, offering a balance between strength and weight.
Surface Treatment: Hot dip galvanization available upon request for enhanced corrosion resistance.
Compatibility: Designed to work with standard Cuplock top and bottom cups.
The hot forged blade is ideal for use in:
High-Rise Construction: Providing stable support for elevated platforms.
Bridge Construction: Ensuring secure scaffolding during the building of bridges.
Industrial Projects: Supporting heavy-duty scaffolding needs in industrial settings.
