We offer a wide range of Scaffolding Bottom Cup which is used in various industries such as petro chemical and oil related industries for different applications. We provide this bottom cup that is available in high graded sheet with the height of 25mm & 29mm. These cups are well known for their high performance, easy operation, high efficiency and low maintenance.
Product Description

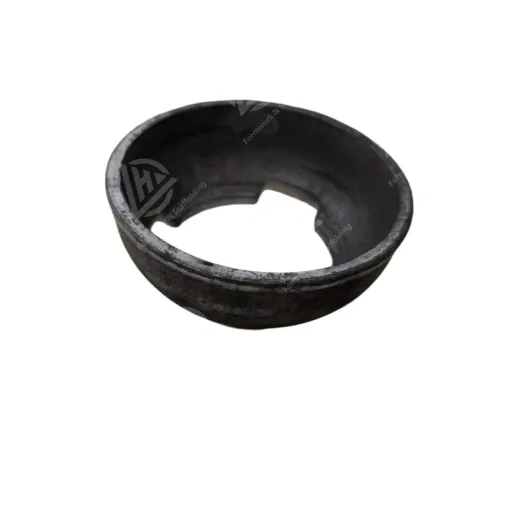

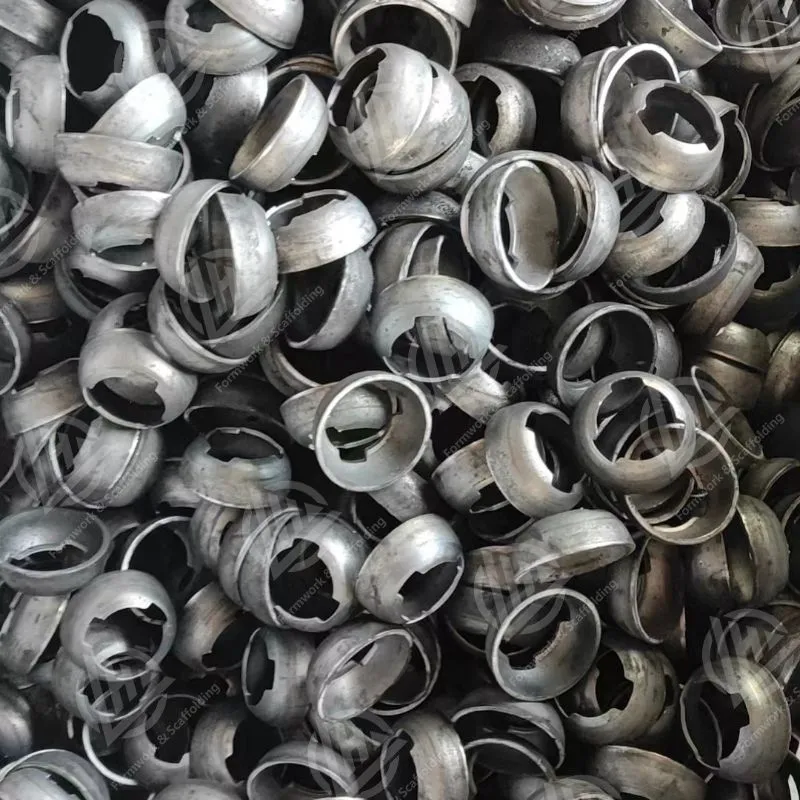

Scaffolding Bottom Cup is a vital component in Cuplock and modular scaffolding systems, designed to provide a strong, stable connection between ledger blades and vertical standards. Manufactured from premium steel and processed via advanced hot forging or pressing, it ensures superior load-bearing capacity and long-term durability on demanding construction sites.
| Parameter | Specification |
|---|---|
| Material | High-quality Q235 / Q345 steel |
| Manufacturing Process | Hot forging |
| Weight | Approx. 190–200 grams |
| Galvanization Thickness | ≥ 60 μm (Hot-dip galvanized) |
| Compliance Standards | EN 12811, BS 1139, AS/NZS 1576 |
| Load Capacity | Tested to support ≥ 25 kN load per connection* |
| Corrosion Resistance | Salt spray test ≥ 500 hours without red rust* |
Our Scaffolding Bottom Cups are engineered for versatility and are suitable for a wide range of scaffolding systems used in construction, industrial, and event environments. Below are the key application areas with detailed use cases:
Used extensively in large-scale civil and commercial construction projects such as:
High-rise residential towers and office buildings
Shopping malls, hotels, and airport terminals
Concrete formwork support for floor slabs, beams, and columns
Façade works (bricklaying, plastering, glass curtain wall installation)
Bottom cups provide a rigid base for ledgers, ensuring the scaffold maintains structural alignment and vertical load integrity, especially in multi-level structures.
Widely adopted in heavy industries requiring frequent scaffold setups for maintenance and inspection:
Oil refineries and chemical plants – for tank and pipeline access
Shipyards – for hull repair, painting, and dry dock operations
Thermal and nuclear power plants – for turbine room maintenance
The robust construction and galvanization make our bottom cups ideal for corrosive or high-temperature environments, reducing replacement frequency and downtime.
Essential for creating stable, modular platforms for:
Concert stages and lighting towers
Grandstand seating structures
Temporary pedestrian bridges and public walkways
Film and broadcast towers
Scaffolding bottom cups allow quick assembly and disassembly, making them ideal for projects with tight deadlines and frequent relocations.
Frequently used in infrastructure projects involving:
Support for casting forms in bridge piers and deck segments
Temporary working platforms within tunnel shafts and arches
Underpass and overpass maintenance scaffolds
The load-bearing capability of forged bottom cups ensures safe performance under point-loaded or dynamic construction conditions like rebar placement and concrete pouring.
1.Hot forging increases tensile strength by up to 30% compared to cold-pressed alternatives, ensuring reliable support under heavy loads.
2.Our hot-dip galvanization process achieves a uniform zinc coating ≥ 60 μm, extending service life in harsh outdoor environments by over 5 years on average.
3.CNC machining and strict quality control keep dimensional tolerances within ±0.5 mm, guaranteeing easy assembly and full compatibility with all Cuplock scaffolding components.
4.Each batch undergoes salt spray testing (500+ hours) and mechanical load testing in certified labs to comply with international standards, minimizing failure risk on site.
