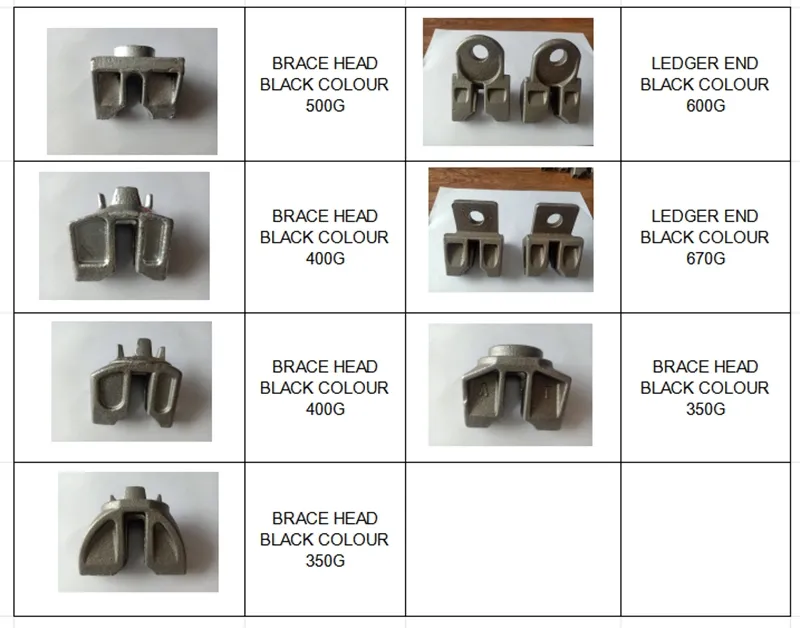

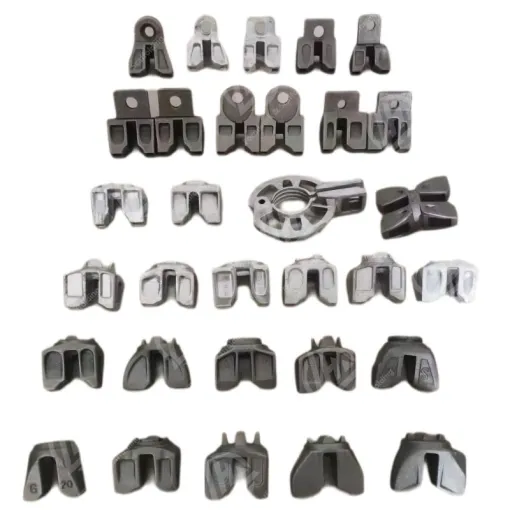

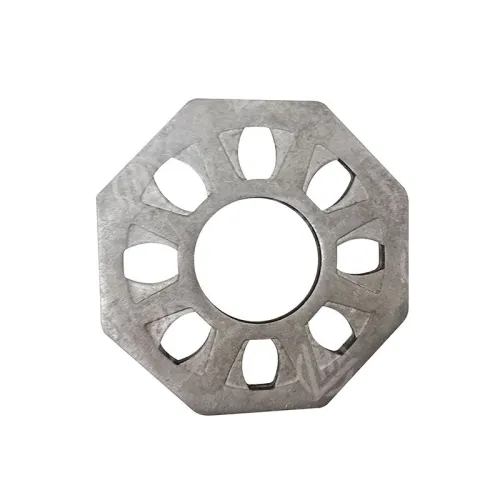

The ledger end and brace end, main producing process is lost wax casting steel. Weight from 0.36 KGS to 0.8 KGS. Usually surface treatment is black. It is together used with ringlock rosette and pin.
Product Description
Our Scaffolding Ringlock Ledger End is designed for use in Ringlock scaffolding systems, offering superior stability and safety. Manufactured from high-strength steel, this component is engineered to withstand heavy-duty loads and harsh working conditions, making it ideal for construction sites, industrial projects, and infrastructure works.
| Material | High-strength carbon steel, precision cast / forged |
| Surface Finish | Hot-dip galvanized (standard); painted or powder-coated optional |
| Compatible Tube Size | Ø48.3 mm scaffold tube |
| Overall Dimensions | Designed to fit standard Ringlock ledger tubes (custom sizes available upon request) |
| Unit Weight | Approx. 0.36 – 0.80 kg (depending on type and design) |
| Load / Bearing Capacity | Engineered for high load transfer in Ringlock scaffolding systems* |
| Structural Performance | Provides rigid and secure connection between ledger and standard |
| Applicable Standards | EN 12810 / EN 12811, ANSI / ASSE, AS/NZS 1576 (system dependent) |
| Certifications | ISO 9001 quality management; third-party testing available upon request |
| System Compatibility | Compatible with most standard Ringlock scaffolding systems |
| Interchangeability | Suitable for use with Ringlock rosettes, wedges, and pins from other brands |
| Packaging | Cartons, pallets, or steel-strapped bundles |
| Export Packaging | Wooden pallets or customized packaging for international shipment |
Made from high-strength steel, ensuring long-lasting durability and performance under high load-bearing conditions.
Galvanized or powder-coated finish for enhanced protection against rust and corrosion.
Quick connection and disconnection to Ringlock scaffolding systems, reducing installation and dismantling time.
Provides a solid connection between ledger pipes and vertical standards, ensuring the scaffolding structure remains stable and secure.
Perfectly compatible with other Ringlock scaffolding components, allowing for flexible and customizable scaffold designs.
Construction Projects – High-rise buildings, commercial buildings, residential complexes.
Industrial Projects – Factories, power plants, warehouses, and chemical plants.
Infrastructure Projects – Bridges, tunnels, highways, and public utilities.
Material: High-strength steel
Surface Treatment: Galvanized, powder-coated, or painted for corrosion protection
Length: Standard lengths, customizable upon request
Weight Capacity: High load-bearing capacity, designed for heavy-duty scaffolding applications
Standard Compliance: Meets industry standards for scaffolding safety and quality
We provide OEM & ODM services to meet your specific scaffolding needs. Contact us today for a quote, more details, or to discuss bulk order requirements for your Ringlock scaffolding system.
The ledger end and brace end, main producing process is lost wax casting steel. Weight from 0.36 KGS to 0.8 KGS. Usually surface treatment is black. It is together used with ringlock rosette and pin.
