Scaffolding Rosette are also called scaffold rings, rosette rings, and ring locks. It is a significant lock component of the ringlock modular system scaffolding verticals. On the verticals standards, scaffold rosettes are welded at every 50cm interval giving nodes of ringlock parts connection.
Product Description
Scaffolding Rosette are also called scaffold rings, rosette rings, and ring locks. It is a significant lock component of the ringlock modular system scaffolding verticals. On the verticals standards, scaffold rosettes are welded at every 50cm interval giving nodes of ringlock parts connection.

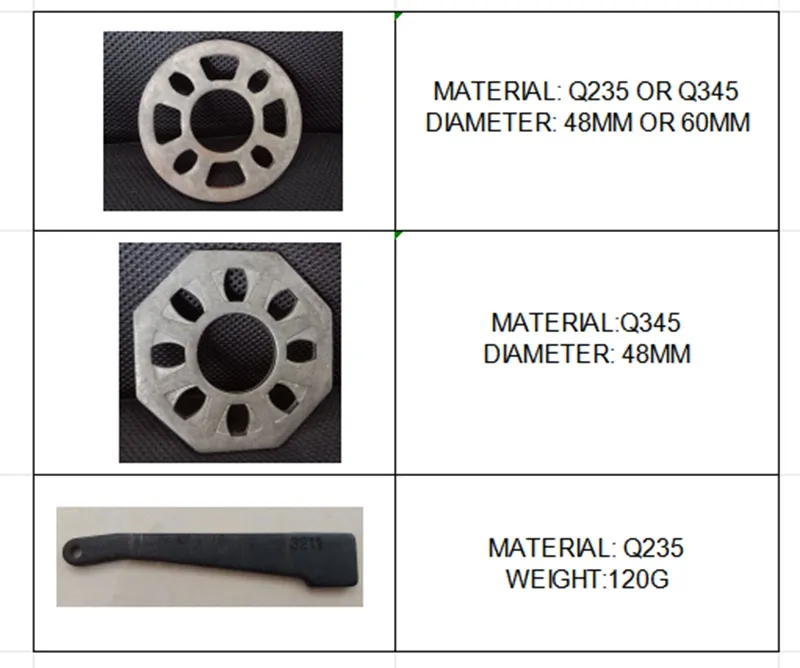

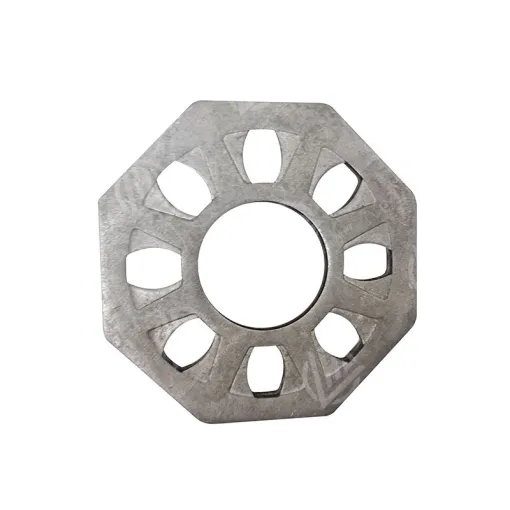

Scaffolding Rosette are made from high-strength steel plates of 8-10mm thickness in round shapes. At the center of the round rosettes, there is a big hole welded to scaffold tubes. 8 small holes on the rosettes allow horizontals, braces, and brackets connections from 8 directions in construction erection.
With these significant rosette components, the ringlock system scaffold is also called rosette scaffolding.
In addition, there are scaffold rosette clamps too. It is a type of ringlock scaffolding clamp that allows the modular system joined at any position wanted for the construction.
| Product Name | Scaffolding Rosette | Ringlock scaffolding node plate |
| Material | Steel | Steel grades S235 & S355 available |
| Thickness | 8-10 mm | Weldable thickness for strong connection |
| Weight | 0.45-0.52 kg | Varies depending on thickness and steel grade |
| Diameter | 123 mm | Outer diameter of the rosette |
| Compatible System | OD48 mm and OD60 mm Ringlock | Fits standard 48mm and 60mm diameter ringlock systems |
| Surface Finish | Black painted / Hot-dip galvanized | Anti-corrosion coating; galvanized for outdoor durability |
| Connection Method | Weldable | Ensures stable and strong joint |
| Standards & Certification | EN 74-1 (example) | Meets European scaffolding safety standards (subject to actual certification) |
| Operating Temperature | -40°C to +80°C | Suitable for various construction environments |
| Load Capacity | Design load ≥ 20 kN | Tested safe working load depending on steel grade and thickness |
| Packaging | 50 pcs per carton | Custom packaging available upon request |
| Customization | Available | OEM/ODM support for size and finish customization |
| Application | Node connection for ringlock scaffolding | Connects vertical and horizontal tubes, ensuring structural stability |
| Corrosion Resistance | Excellent | Hot-dip galvanized version especially suited for outdoor and coastal environments |
We manufacture two sizes of ringlock rosettes: one designed for the OD48mm traditional ringlock scaffolding system, and the other for the OD60mm high-load shoring system ringlock scaffold.
The 48mm ringlock scaffolding standards use 48mm diameter scaffold tubes, while the 60mm shoring system ringlock standards use 60mm diameter scaffold tubes. To ensure proper welding of rosettes and rings onto the scaffold tubes forming the ringlock standards, the rosette’s center hole must match the outer diameter of the scaffold tube.
| No. | 48mm Scaffold Rosettes | 60mm Scaffold Rosettes |
|---|---|---|
| Diameter | 122-124 mm | 133-135 mm |
| Weight | 0.4-0.5 kg | 0.5-0.6 kg |
| Center Hole | Designed for 48mm tube | Designed for 60mm tube |
| Thickness | 8-10 mm | 10-12 mm |
| Steel Grades | S235 & S355 | S235 & S355 |
| Annealed Option | Available | Available |
