The double coupler’s weight is 1kgs. Normally it is used for 48mm and 60mmpipe. It is used together with swivel coupler. It can ensure strong quality. This kind of coupler is easy to install and disassemble. Economy, convenient, and fast, it is welcomed on the market.
Product Description

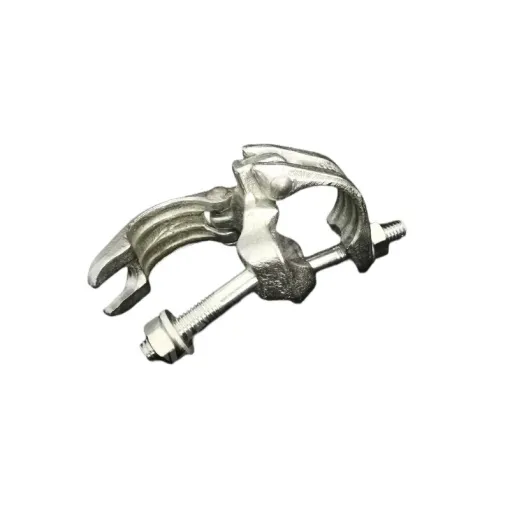

Scaffolding Hot-Forged Double (Fixed) Coupler—also known as a Fixed Scaffolding Clamp—is a robust connector used to join two scaffold tubes in a rigid, non-swivel (fixed) configuration. Hot forging imparts superior strength and durability, making it ideal for heavy load scenarios in construction, infrastructure, and industrial scaffolding systems.
Hot Forged Steel Construction: Ensures enhanced tensile strength and excellent resistance to impact and fatigue.
Fixed Double Clamp Design: Provides rigid, non-movable connection between two scaffold tubes for stability and safety.
Standards Compliance: Certified per EN74 and BS1139 specifications.
Finish: Electro-galvanized surface for improved resistance to rust; suitable for outdoor and humid environments.
Ease of Installation: Compatible with standard scaffold spanners; straightforward assembly and maintenance.
High Cost-Effectiveness: Low maintenance, long lifespan, ideal for bulk usage.
| Tube Diameter Compatibility | 48.3 mm and 60 mm scaffold tubes |
| Coupler Type | Hot-forged fixed/double coupler (non-swivel) |
| Surface Treatment | Electro-galvanized per EN74 / BS1139 standards |
| Weight per Unit | Approximately 0.96-1.00 kg each |
| Packaging | 25 sets per bag; 50 bags per wooden pallet |
The double coupler’s weight is 1kgs. Normally it is used for 48mm and 60mmpipe. It is used together with swivel coupler. It can ensure strong quality. This kind of coupler is easy to install and disassemble. Economy, convenient, and fast, it is welcomed on the market.
|
PICTURE |
NAME |
DESCRIPTION |
WEIGHT |
PACKAGE |
|
|
DoubleCoupler |
48.3*48.3mm Electro-Galvanized EN74/BS1139 |
0.96-1.0KGS |
25sets/bag |
|
|
Swivel |
48.3*48.3mm Electro-Galvanized EN74/BS1139 |
1.12-1.15KGS |
25sets/bag |
|
|
GriderCoupler |
48.3mm Electro-Galwanized |
0.6-0.63KGS |
40sets/bag |
|
|
Half Coupler |
48.3mm Electro-Galwanized |
0.54-0.56KGS |
40sets/bag |
|
|
Beam Coupler |
48.3mm Electro-Galwanized |
1.48-1.5KGS |
20sets/bag |
|
|
Sleeve Coupler |
48.3mm Electro-Galwanized |
0.98-1.0KGS |
25sets/bag |
|
|
Putlog Coupler |
48.3mm Electro-Galwanized |
0.6-0.63KGS |
40sets/bag |
