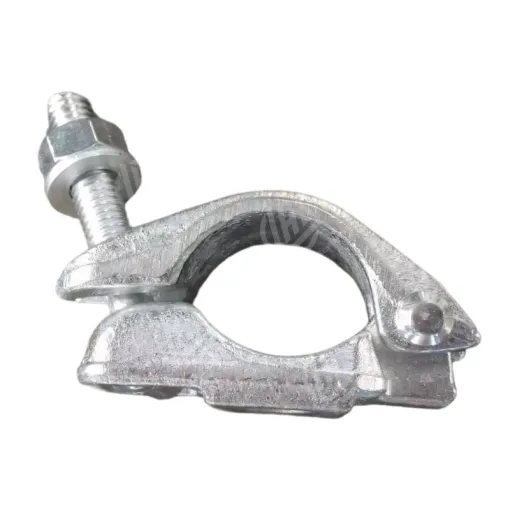

Forged scaffold half coupler, also known as a half swivel coupler, check coupler, or single coupler, is essentially one half of a drop-forged double swivel coupler.
Product Description
Forged scaffold half coupler, also known as a half swivel coupler, check coupler, or single coupler, is essentially one half of a drop-forged double swivel coupler.
This type of half coupler serves as a fundamental component in modular scaffolding systems. It is commonly used in the fabrication of parts such as ringlock spigot couplers, cuplock diagonal braces with clamps, and kwikstage scaffold corner panel fillers, among others.
It can be combined with bolts and nuts, eye bolts, or long pins to assemble accessories like scaffold toe board couplers with hooks and Jordan couplers.
To enhance corrosion resistance, we offer scaffold half couplers with both zinc-plated and hot-dip galvanized finishes.
| Item | Tube Size | Type | Surface Finish | Weight (kg) |
|---|---|---|---|---|
| Forged Half Swivel Coupler | 48.3 mm | Drop Forged | Electro-galvanized | 0.65 – 0.70 |
| Forged Half Swivel Coupler | 48.3 mm | Drop Forged | Hot-dip Galvanized | 0.75 – 0.80 |
| Heavy Duty Half Swivel Coupler | 48.3 mm | Drop Forged | Hot-dip Galvanized | 0.85 – 0.90 |
| Half Coupler for Toe Board Hook | 48.3 mm | Drop Forged | Zinc-plated / HDG | 0.70 – 0.78 |
| 60mm Tube Half Coupler (Custom) | 60.3 mm | Drop Forged | Hot-dip Galvanized (HDG) | 0.95 – 1.10 |
All forged half-swivel couplers comply with the EN 74 standard and use 8.8 grade bolts. The bolts are available with either coarse (quick) threads or acme threads. Quick-threaded bolts are commonly used for couplers exported to Germany, featuring a hot-dip galvanized finish for maximum durability.
The bolt nuts for scaffold half couplers are customized based on the requirements of different countries:
Germany Type: 22mm Flange Nut, quick-threaded bolt, hot-dip galvanized for maximum corrosion resistance.
British Type: 21mm Cross Nut with washer, compliant with BS1139 standard.
Australian Type: 23mm Flange Nut, designed for heavy-duty scaffolding systems.
USS Type (USA): 22mm Flange Nut, compatible with drop forged couplers.
France Type: 22mm Hex Nut with washer, commonly used with acme-thread bolts.
Italy Type: 21mm Flange Nut, similar in structure to the British style.
Spain Type: 22mm Hex Nut with serrated flange, anti-slip design for added security.
Middle East Type (UAE, Saudi Arabia, etc.): 22–23mm Flange Nut, customized thickness available for high-strength applications.
South Korea Type: 21mm Flange Nut, typically electro-galvanized.
Japan Type: 22mm Acme-thread Hex Nut, precision threads used in high-standard scaffolding systems.
South Africa Type: 23mm Flange Nut with thick zinc coating, suitable for high-load systems.
India Type: 21mm Hex Nut, economy type, generally zinc-plated.
Southeast Asia Type (e.g. Philippines, Malaysia): 22mm Flange Nut, often used in light-duty scaffolding setups.
|
Picture |
Name |
Description |
Weight |
Package |
|
|
DoubleCoupler |
48.3*48.3mm Electro-Galvanized EN74/BS1139 |
0.96-1.0KGS |
25sets/bag |
|
|
Swivel |
48.3*48.3mm Electro-Galvanized EN74/BS1139 |
1.12-1.15KGS |
25sets/bag |
|
|
GriderCoupler |
48.3mm Electro-Galwanized |
0.6-0.63KGS |
40sets/bag |
|
|
Half Coupler |
48.3mm Electro-Galwanized |
0.54-0.56KGS |
40sets/bag |
|
|
Beam Coupler |
48.3mm Electro-Galwanized |
1.48-1.5KGS |
20sets/bag |
|
|
Sleeve Coupler |
48.3mm Electro-Galwanized |
0.98-1.0KGS |
25sets/bag |
|
|
Putlog Coupler |
48.3mm Electro-Galwanized |
0.6-0.63KGS |
40sets/bag |
